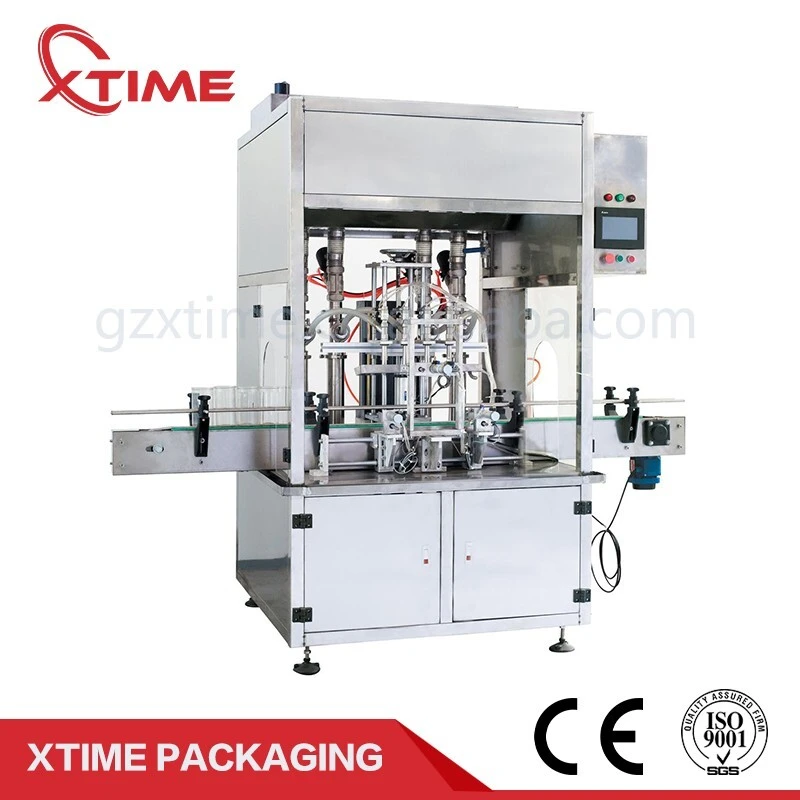

Liquid quantitative filling---(Oil, sauce) Viscous liquid quantitative filling

. Materials: Frame of the filling machine is made of 304# stainless steel. Material tank, filling nozzle and the parts access to liquid are made of #304 stainless steel and PVC used in food industry. 2.Pneumatic components: Domestic well-known brands. 3.PLC: Siemens of Germany. 4.HMI: 7" color touch screen of Siemens of Germany. 5.Photoelectric sensor: LEUZE in Germany or SICK of Germany. 6.Relay and air switch: Schneider of France. 7.Material pumping: Domestic stainless steel self-priming pump or screw pump (depend on the material). 8.Servo motor: Servo motor of Schneider and its driver. 9.Motor frequency converter: AB of the United States, Schneider of France or Siemens of Germany. 10.Conveyer belt material: Stainless steel chain belt with a width of 82.6mm. 11.Filling conveyer belt motor: 370W domestic AC motor. 12.Materials of the seal ring of the filling machin

. Materials: Frame of the filling machine is made of 304# stainless steel. Material tank, filling nozzle and the parts access to liquid are made of #304 stainless steel and PVC used in food industry.
2.Pneumatic components: Domestic well-known brands.
3.PLC: Siemens of Germany.
4.HMI: 7" color touch screen of Siemens of Germany.
5.Photoelectric sensor: LEUZE in Germany or SICK of Germany.
6.Relay and air switch: Schneider of France.
7.Material pumping: Domestic stainless steel self-priming pump or screw pump (depend on the material).
8.Servo motor: Servo motor of Schneider and its driver.
9.Motor frequency converter: AB of the United States, Schneider of France or Siemens of Germany.
10.Conveyer belt material: Stainless steel chain belt with a width of 82.6mm.
11.Filling conveyer belt motor: 370W domestic AC motor.
12.Materials of the seal ring of the filling machine: Polytetrafluoroethylene, Fan plug seal and silicone ring.
13.Exposed parts: Stainless steel, anodic oxidation treated aluminum alloy, electroplating treated 45# steel, engineering plastic parts.

Inquiry

Write a Review

Model: XT-GZA6

1.Qty of filling head: 6~14 head.
2.Filling capacity: 50ML-3000ML (According to the samples provided by your company).
3.Filling method: Servo-driven piston quantitative multi-head filling.
4.Filling speed: about 6~8 bottles/min. head (400ml bottle).
5.Filling accuracy: ±1%.
6.Material: Frame of the filling machine is made of 304# stainless steel.
7.Program control: PLC + touch screen.
8.Filling nozzle, material tank and other parts access to liquid are made of #304 stainless steel, PVC and POM.
9.Air pressure: 0.6-0.8Mpa.
10.Conveyor motor: 370W frequency conversion speed regulation motor.
11.Elevating motor: 370W frequency conversion speed regulation motor.
12.Filling motor: Servo motor (Specific power is to be determined by filling capacity).
13.Power: About 3.0KW/380V 3-phase 5-wire.
14.Capacity of material tank: 200L (with liquid level switch).
15.Protective device: Outage alarm on shortage of liquid in the reservoirtank.
